A parking structure needs dependable illumination that responds to vehicles and pedestrians without leaving every fixture at full output all night. An office needs daylight-responsive zones that don't leave perimeter work areas overlit. A multifamily community needs common-area lighting that operates predictably, while emergency fixtures and exit paths remain available during an outage.
Those are different control jobs, even when the same LED fixture appears in each property. The right choice depends on the desired outcome, existing wiring, fixture and driver compatibility, property scale, tenant disruption, maintenance capability, and California compliance requirements. In Southern California retrofits, installation access and commissioning can matter as much as protocol features.

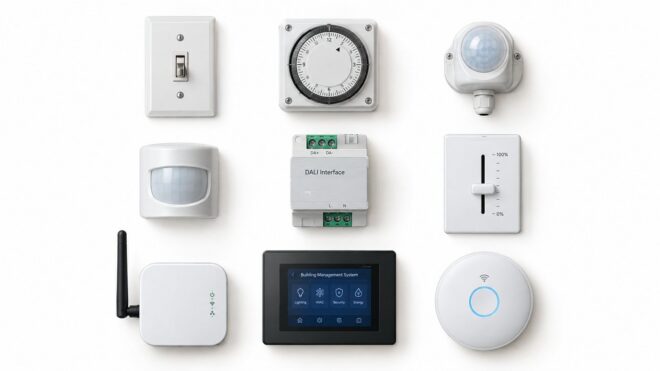

This guide organizes the main types of lighting control systems by what they do, from basic dimming and automatic detection to fixture-level networking, life-safety operation, scene management, and building automation. The nine systems aren't mutually exclusive. A parking structure might combine 0-10V dimming, occupancy detection, scheduling, and emergency backup. An office might layer DALI, daylight harvesting, scene presets, and BAS integration.
1. DALI
DALI, or Digital Addressable Lighting Interface, is designed for properties that need more than zone-level switching. Its two-way digital bus can address individual fixtures, adjust their output, and return operating information to a central system. That makes it useful where managers expect layouts, tenants, or operating schedules to change over time.
A multi-tenant office can use DALI to create per-zone dimming and occupancy responses without treating every circuit as a permanent control boundary. A retail center can recall scenes for opening, trading hours, cleaning, and closing. In a parking structure, DALI can work with presence detection so selected areas brighten when activity occurs, while multifamily owners can schedule common-area lighting and monitor faults from a central interface.
The protocol's value is flexibility and feedback, not simplicity. Addressing fixtures, documenting scenes, and training maintenance staff take more effort than installing a basic switch or analog dimmer.
Where DALI earns its keep
A Canadian NRC study reported that a DALI-based system with occupancy sensors and personal controls saved 32% in daily energy use, even though its installed lighting power density was 50% higher than the conventional replacement system, as documented in the NRC publication. The result illustrates why fixture wattage alone doesn't determine operating performance. Control strategy, schedules, occupancy response, and user behavior all matter.
Practical rule: Don't specify DALI just because individual addressing sounds advanced. Specify it when reconfiguration, diagnostics, or centralized control will justify the added commissioning and documentation work.
Pair DALI with occupancy sensors and daylight response where the building can use both strategies. Use a central gateway when several circuits or areas need one management point, and record fixture addresses, scenes, gateways, and replacement procedures. Diagnostic feedback can help a technician locate a failing driver or ballast before the fixture becomes a complete outage.
2. DMX512 Protocol
DMX512 solves a different problem. It was developed for stage lighting, but it also suits commercial environments where fixtures must change together, respond quickly, or produce coordinated color and intensity effects. Hospitality venues, resorts, entertainment spaces, flagship retail stores, and architectural lobbies are the natural candidates.
A resort might use DMX to synchronize façade accents and arrival-area lighting. A retail flagship can coordinate color-changing displays with seasonal merchandising. A lobby can transition from a bright daytime scene to a warmer evening environment, while an entertainment venue can run programmed sequences for presentations or events.
DMX is powerful, but it's rarely the best answer for ordinary office corridors or a multifamily stairwell. A conventional occupancy sensor and dimming controller will usually be easier for building staff to understand and maintain when dynamic effects aren't part of the brief.
Installation discipline matters
Standard DMX networks depend on correct topology, cable selection, channel planning, and termination. Signal reflections, poor connections, and undocumented assignments can create intermittent behavior that's difficult to diagnose after ceilings close or event schedules begin.
For larger installations, Art-Net over Ethernet can extend control across a networked architecture, while splitters and repeaters can help distribute signals across larger layouts. Use proper 120-ohm termination, document channel assignments, and save backup scene files. Commission every transition under actual operating conditions, including the timing between zones.
Best property fit
DMX makes sense when lighting is part of the customer experience or architectural identity. It can also coexist with other systems, with DMX handling visual effects while a separate control layer manages general illumination, occupancy, schedules, and emergency operation.
The trade-off is operational specialization. Property teams may need a lighting programmer or integrator rather than a general electrical technician for scene changes and troubleshooting. If the owner doesn't have that maintenance capability, a simpler protocol may deliver better long-term reliability despite offering fewer creative options.
3. 0-10V Analog Control
0-10V control sends a low-voltage analog signal to a compatible driver. The signal adjusts light output across a zone, making the method familiar, relatively straightforward, and useful for many LED retrofit applications. It doesn't provide the individual fixture addressing or feedback available from a digital system.
That simplicity can be an advantage. An older office building may need zone-based dimming without replacing every control component. A parking garage or warehouse may need only broad dimming zones linked to occupancy sensors and schedules. Multifamily common areas can use the same approach when the owner wants dependable automatic operation without introducing a complex network.
The limitation appears when the property changes. If a tenant divides an office, a warehouse changes its aisle layout, or a garage needs fixture-by-fixture monitoring, zone wiring can become restrictive. Reconfiguring the system may require new control conductors rather than a software change.
Match the method to the retrofit
0-10V is often a sensible choice when existing fixtures or drivers already support it and the control objective is uncomplicated. Check the actual driver specifications before assuming compatibility. Some fixtures dim smoothly through the intended range, while others may flicker, drop out, or behave inconsistently at low levels.
Use shielded control cable where electrical noise could interfere with the signal, terminate long runs correctly, and document every control circuit. Clear wiring diagrams are especially important when line-voltage and low-voltage work are installed by different crews.
A simple control system that's installed and documented correctly will outperform a sophisticated system nobody can service.
A major LED retrofit may be the right time to move to DALI or a networked platform, especially if the owner expects future rezoning, remote monitoring, or BAS integration. But a full protocol upgrade isn't automatically better for a small property. Avoid paying for capabilities the maintenance team won't use.
4. Occupancy Sensor-Based Control
Occupancy control turns lighting down or off when a space is empty and restores the programmed level when people arrive. It addresses one of the most common operating failures in commercial properties, lights staying on after the last person leaves.
Passive infrared, or PIR, sensors detect changes in heat patterns and movement. Microwave sensors use radio-frequency detection and can cover spaces where PIR line of sight is difficult. Dual-technology sensors combine detection methods and can reduce nuisance triggers in areas such as restrooms, storage rooms, and irregularly shaped spaces.
The best application depends on movement patterns. Private offices, conference rooms, back-of-house areas, stockrooms, stairwells, warehouse aisles, and parking-structure pedestrian zones often benefit from automatic detection. A multifamily corridor may need a different strategy from a rarely used storage room because residents expect a smooth, predictable response.
Commission the sensor, not just the fixture
Sensor placement determines whether the system works. Irregular rooms, shelving, partitions, vehicle columns, and elevator doors can create blind spots or false triggers. During commissioning, technicians should test coverage, sensitivity, timeout behavior, and override operation with furniture, vehicles, and normal occupant movement in place.
The Lawrence Berkeley National Laboratory field study found that occupant sensors saved 9.0% to 14.6% of lighting energy, averaging about 10%, while a longer-term office test recorded nominal average savings of 10% in the controlled zones. Weekend savings reached 47%, demonstrating how strongly results depend on occupancy patterns and operating hours, according to the LBNL field report.
Use a timeout that balances convenience with waste reduction, and provide an override where staff occasionally need continuous light. Record sensor locations and settings so a future technician won't have to rediscover the system after a tenant improvement or ceiling repair.
5. Daylight Harvesting and Photocell Control
Daylight harvesting uses photosensors to reduce electric light when natural light can provide part of the required illumination. It's most effective where daylight is consistent enough to matter and where fixtures are arranged in controllable zones, such as offices along windows, retail perimeter areas, corridors with glazing, and common rooms in multifamily communities.
A photocell shouldn't control an entire floor just because one window receives sunlight. Perimeter fixtures and interior fixtures experience different conditions, so they usually need separate zones. A sensor placed where it sees direct sun, reflected glare, or a permanent obstruction may produce unstable dimming and occupant complaints.
Design the daylight zone carefully
Start by mapping windows, skylights, work areas, fixture rows, and likely obstructions. Position sensors to represent the light level at the occupied task area rather than relying on a convenient ceiling location. Then commission the system under different sky conditions, because a setting that works on a bright afternoon may not work during overcast weather.
Daylight response should complement, not fight, occupancy control. A vacant perimeter zone can remain off, while an occupied zone can dim in response to available daylight. The controls must also allow sufficient light for the actual task, since over-aggressive dimming encourages occupants to override or disable the system.
Photocell lenses need to stay clean, and furniture, signage, blinds, and future partitions can change the sensor's view. Include calibration and inspection in the maintenance plan. In an office remodel, reassess daylight zones rather than assuming the original layout still represents how people use the space.
California retrofit considerations
California projects often combine daylight response with other automatic control requirements under Title 24. The design team should identify affected zones early, coordinate sensor locations with reflected ceiling plans, and retain testing records. A qualified contractor can help verify that the installed controls, dimming drivers, schedules, and documentation match the approved design.
6. Network-Based Control Systems
Wireless network-based controls use technologies such as WiFi, Zigbee, and Z-Wave to connect distributed fixtures, sensors, gateways, and software. They can reduce the need for new control wiring, which is valuable in occupied offices, retail centers, multifamily buildings, and remodels where opening ceilings would disrupt tenants.
A property manager may monitor several buildings from one dashboard, change schedules without visiting each site, or review connectivity and device status remotely. Multifamily operators can integrate lighting with broader smart-building functions, while a retail team can adjust programmed display lighting without sending a technician to every location.
Wireless isn't automatically easier. RF interference, network outages, battery replacement, cybersecurity, vendor lock-in, and gateway failure all become part of the operating model. Wired controls generally remain attractive in large installations where reliability, security, and predictable communication take priority. Recent market coverage identifies wireless as the faster-growing approach, while wired systems retain the largest share because of those reliability and security considerations, as discussed in this lighting-control market analysis.
Pilot before scaling
Run a site survey before selecting devices. Concrete parking structures, metal equipment, elevator shafts, dense tenant spaces, and electrical rooms can affect signal performance. A single-floor or single-building pilot can expose coverage gaps, user-interface problems, and battery-maintenance demands before the owner commits to a portfolio-wide rollout.
Keep lighting traffic separate from guest or tenant networks where practical, use strong credentials, rotate access regularly, and document gateway assignments. The automated lighting controls service overview can help property teams frame the low-voltage, control, and maintenance scope before installation.
Choose a platform with a clear exit strategy. Confirm who owns configuration data, whether replacement devices remain interoperable, how firmware updates are managed, and what happens if cloud access is interrupted. Remote visibility has value only when someone is responsible for responding to alerts.

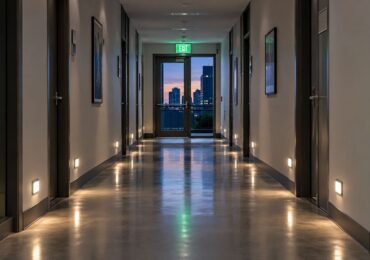

7. Emergency Lighting and Battery Backup Control Systems
Emergency lighting control has a life-safety purpose. During a utility failure, designated fixtures, exit signs, and egress routes must operate from an approved backup source so occupants can move toward exits. The system may use distributed batteries at individual fixtures, a central battery installation, or another approved emergency-power arrangement suited to the property.
Multifamily communities commonly need backup lighting in corridors, stairs, exits, and shared areas. Office buildings may use centralized systems for many fixtures, while retail centers and parking structures often combine emergency path lighting with distributed battery units. Hospitality properties need dependable operation because guests may be unfamiliar with the building when an outage occurs.
Regular lighting controls and emergency controls shouldn't be treated as interchangeable. An occupancy sensor may reduce normal lighting, but emergency operation requires an intentional sequence, suitable circuit separation, testing, and records.
Treat testing as an operating program
Schedule visual inspections, manual-switch checks, self-test reviews, and battery condition checks. Keep records of failures, battery replacements, service visits, and corrective work. Qualified technicians should verify battery capacity through the required testing program and simulate actual emergency conditions during full-power tests.
A central monitoring system can alert staff to battery degradation or fixture failures, but alerts don't replace physical inspection. A disconnected fixture, damaged exit sign, blocked route, or failed transfer component still requires someone on site to verify the condition.
Emergency lighting is not finished at installation. Its reliability depends on documented testing and timely corrective work.
For a practical service and testing framework, review emergency lighting testing services. Plan replacements before batteries reach the end of their service life, isolate emergency circuits from ordinary overload conditions, and keep emergency sequences understandable to the technicians who'll maintain them.
8. Scene-Based and Preset Lighting Control
Scene controls let users recall a coordinated group of fixture levels with one command. The control job is operational flexibility, not just energy reduction. A conference room may need presentation, video call, discussion, and cleaning scenes. A clubhouse may support a fitness class in the morning and a private event later. A restaurant or hotel lobby may use different scenes across the day.
Scene logic reduces the number of individual adjustments operators must make, but too many presets create confusion. Name scenes by their purpose, not by an unexplained number. A facilities employee should know what “Presentation Mode” does without consulting a programmer.
Make scenes usable for ordinary staff
Keep the scene list short enough for the space and provide a quick-reference guide near the control station. Include a full-bright setting for cleaning and maintenance. Program smooth transitions where abrupt changes would distract occupants, but don't use fades in situations where an immediate change is required for safety or operations.
Before handover, test every scene with the actual furniture, screens, window coverings, display cases, and architectural accents in place. A scene that looked correct in an empty room may create glare on a video display or leave a work surface too dim once the tenant moves in.
Scene controls work especially well alongside DALI or DMX. DALI can manage individually addressable general lighting, while DMX can coordinate dynamic architectural effects. In a smaller multifamily clubhouse, a simpler preset controller may be preferable if property staff need only a few repeatable settings and don't have a dedicated lighting specialist.
Document scene values, transition times, control locations, and reset procedures. Train staff hands-on, because a system that's easy for the installer but intimidating for the operator will generate service calls and manual overrides.
9. Building Automation System Integration and Title 24 Compliance
BAS integration connects lighting with systems such as HVAC, access control, security, and facility-management software. The potential benefit is coordinated operation. Occupancy information can influence more than lights, schedules can align across building systems, and managers can view lighting status through a broader operational platform.
A large office portfolio may want centralized schedules and alarms. A multifamily property may coordinate common-area lighting with access events and security procedures. A shopping center may need owner-level visibility across tenant areas, while a resort may coordinate guest-room lighting with occupancy and climate controls.
Integration also creates responsibility. BACnet, Modbus, or LON connections don't define good control logic by themselves. Someone must document sequences, map points, assign permissions, protect the network, and maintain the system after the original programmer leaves.
Start with the sequence of operations
Write the intended behavior before programming begins. Define what happens during occupancy, vacancy, after-hours access, daylight availability, alarms, overrides, communication loss, and emergency operation. Use standard protocols where possible to preserve vendor flexibility, but verify that the actual fixtures, gateways, BAS, and supervisory software can exchange the required points.
California compliance needs its own design and verification path. The source on commercial lighting control systems and Title 24 support identifies occupancy and vacancy sensors, daylight-harvesting photocells, dimming controls, scheduling devices, and networked controllers as common commercial scopes. Engage qualified Title 24 personnel early, coordinate installation drawings with the controls sequence, and plan third-party verification and documentation before final inspection.
The U.S. Energy Information Administration reported that lighting controls had penetrated a little more than 50% of commercial buildings in 2018 and projected penetration to exceed 80% by 2050, in the referenced market and building-technology report. The projection is not a guarantee for any individual property, but it reflects how automated controls are becoming a standard commercial-building consideration.
9-Point Lighting Control Systems Comparison
| System / Type | Implementation Complexity | Resource Requirements | Expected Outcomes | Ideal Use Cases | Key Advantages |
|---|---|---|---|---|---|
| DALI (Digital Addressable Lighting Interface) | Medium–High, requires programming and trained technicians | DALI-compatible ballasts/drivers, 2‑wire bus, gateways for large sites, commissioning | Precise per-fixture dimming, diagnostics, energy savings, Title 24 support | Commercial offices, retail, parking, multifamily common areas | Two-way feedback, individual addressing, standardized multi-vendor support |
| DMX512 Protocol (Digital Multiplex) | Medium, channel mapping and scene programming required | DMX controllers, shielded cabling, splitters/repeaters, Art‑Net gateways for Ethernet | Low-latency synchronized effects, complex dynamic scenes | Hospitality, retail flagship stores, entertainment venues, architectural accents | High-speed control, supports complex color/effect choreography |
| 0-10V Analog Control (Low Voltage DC) | Low, simple wiring and basic setup | 0‑10V drivers/ballasts, two/three‑wire control cabling, shielding for long runs | Reliable basic dimming, low cost, limited diagnostics and scalability | Legacy buildings, simple zone dimming, industrial and retrofit projects | Proven reliability, low equipment and installation cost, easy maintenance |
| Occupancy Sensor-Based Control (PIR / Microwave) | Low–Medium, sensor selection and tuning needed | PIR/microwave/dual sensors, mounting hardware, occasional integration with controls | Significant energy savings via automatic on/off, convenience, Title 24 compliance | Private offices, corridors, restrooms, storage, parking stairwells | Rapid payback, easy retrofit, reduces wasted runtime |
| Daylight Harvesting & Photocell Control | Medium, careful sensor placement and calibration | Photocells, integration with dimming system (DALI/0‑10V), commissioning | 20–40% perimeter energy reduction, consistent ambient light, LEED support | Perimeter offices, retail displays, education and healthcare perimeter zones | Maximizes natural light use, improves comfort, supports energy credits |
| Network-Based Control (WiFi, Zigbee, Z‑Wave) | Medium–High, network design and cybersecurity required | Wireless fixtures/gateways, dedicated networks, cloud services, battery sensors | Remote monitoring/control, analytics, scalable IoT integration | Retrofits, multi‑building campuses, hotels, smart multifamily properties | Eliminates control wiring, remote/cloud management, user-friendly apps |
| Emergency Lighting & Battery Backup Control | High, code-driven design, complex wiring and testing | Central or distributed batteries, transfer switches, monitoring systems, regular testing | Life‑safety compliance, automatic backup power, documented self-testing | Multifamily corridors/stairs, commercial buildings, hospitals, parking structures | Ensures egress safety, mandatory code compliance, automated testing/monitoring |
| Scene-Based / Preset Lighting Control | Medium, programming and operator training required | Scene controllers, keypads/software, integration with dimming protocols | Fast recall of complex presets, consistent ambiance, operational simplicity | Conference rooms, hotels, retail displays, restaurants, event spaces | Simplifies operation, consistent scenes, reduces operator errors |
| BAS Integration & Title 24 Compliance | Very High, systems integration, engineering, and commissioning | BACnet/Modbus/LON controllers, protocol gateways, dashboards, cybersecurity, commissioning | Centralized control, coordinated lighting/HVAC optimization, compliance documentation | Large commercial buildings, campuses, healthcare, portfolio management | Unified management, energy analytics, scalability, regulatory compliance |
Match the System to the Property's Next Decision
Start with the control objective. If the problem is lights left on in private offices, restrooms, storage rooms, or stairwells, occupancy or vacancy control may be enough. If the problem is excessive light near windows, begin with daylight zoning and photocell placement. If the property needs coordinated ambience, use scene or DMX control. If managers need individual fixture status, remote scheduling, or future rezoning, consider DALI or a networked architecture.
Next, inspect the existing fixtures, drivers, circuits, and wiring. A 0-10V retrofit can be practical when compatible drivers and straightforward zones already exist. Wireless controls can reduce rewiring and tenant disruption in an occupied building, but the owner must plan for RF surveys, cybersecurity, gateway resilience, and sensor batteries. Wired digital systems can offer dependable communication and stronger fixture-level management, but they may require more installation coordination and commissioning.
Map occupancy patterns before choosing timeout behavior or zoning. A parking structure needs reliable detection, safe standby operation, and clear emergency separation. A multifamily community often benefits from simple, predictable common-area scheduling and occupancy response. A dynamic retail or hospitality property may justify scene programming and DMX for customer-facing areas, while a larger commercial portfolio may benefit from network dashboards and BAS integration.
Commissioning deserves its own budget and schedule. Verify sensor coverage, daylight response, dimming quality, scene behavior, emergency transfer, network communication, overrides, and BAS points under real conditions. Save drawings, fixture addresses, control sequences, settings, credentials, scene files, test results, and battery records. Without that documentation, even a well-designed system becomes expensive to troubleshoot after tenant changes or staff turnover.
Market coverage indicates that retrofit work is a major part of lighting-controls deployment, with retrofit installations accounting for over 58% of the 2026 market in one projection and commercial applications holding more than 37% share, as reported in the referenced market analysis. Those figures are projections and market estimates, not a promise of savings for a specific building. They do reinforce a practical point: many owners are upgrading legacy fixtures and controls without choosing disruptive demolition.
Bring a qualified commercial electrical and lighting contractor into the project early. The right team can review compatibility, coordinate line-voltage and low-voltage work, install and maintain controls, test emergency systems, and prepare Title 24 documentation. Access Electrical and Lighting serves Southern California properties, including commercial, retail, office, parking, and multifamily sites, with lighting, electrical, emergency, low-voltage, and compliance services.
